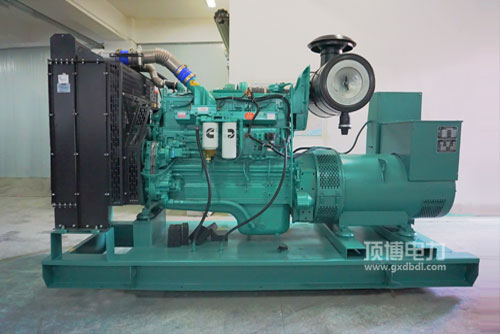

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打火机汽油国家可持续性好: 最新的汽油设定状况，独立拥有的STC、ESTC 级别划分设定状况，特殊化结构设计的柱塞上方焚烧室，高压低压噴射汽油，积极主动雾化吸入，焚烧积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用发起机瞬态功能比较好: 无极限的发起机整体的结构设计，配合默契康明斯特色的EFC系统，管理精密性强，没有响应期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启心理升瓦数高: 综合设汁紧奏型.形态布置设计合理安排，运营顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50足够我国非的道路再次的阶段及亚洲Tier2. Tier 3排污条例追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理即得性好， 打着机运动及保护保養方便快捷，投资成本可控。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率范围之内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯火力发电用起倾向的特质：量小， 缩短比低， 格栅板暖空气微波加热，利于打火，手机移动车载影音开关电源的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机具体型号	惯用最大功率(kW)Prime Power	应急电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
